65/69 Mopar Wiring

65 Dodge Coronet Wiring

This page is more for a reference than anything else. It contains links to a pair of images which are the full wiring diagram for a 67 Dodge Coronet. Most of the cars and trucks in this generation are similarly wired so it can be used as a good guideline to other models, including trucks.

Image link Part 1 [left] [JPG 535K] | Image link part 2 [right] [JPG 594K]

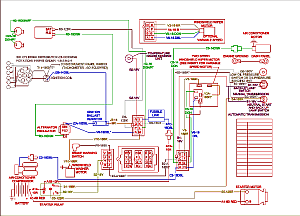

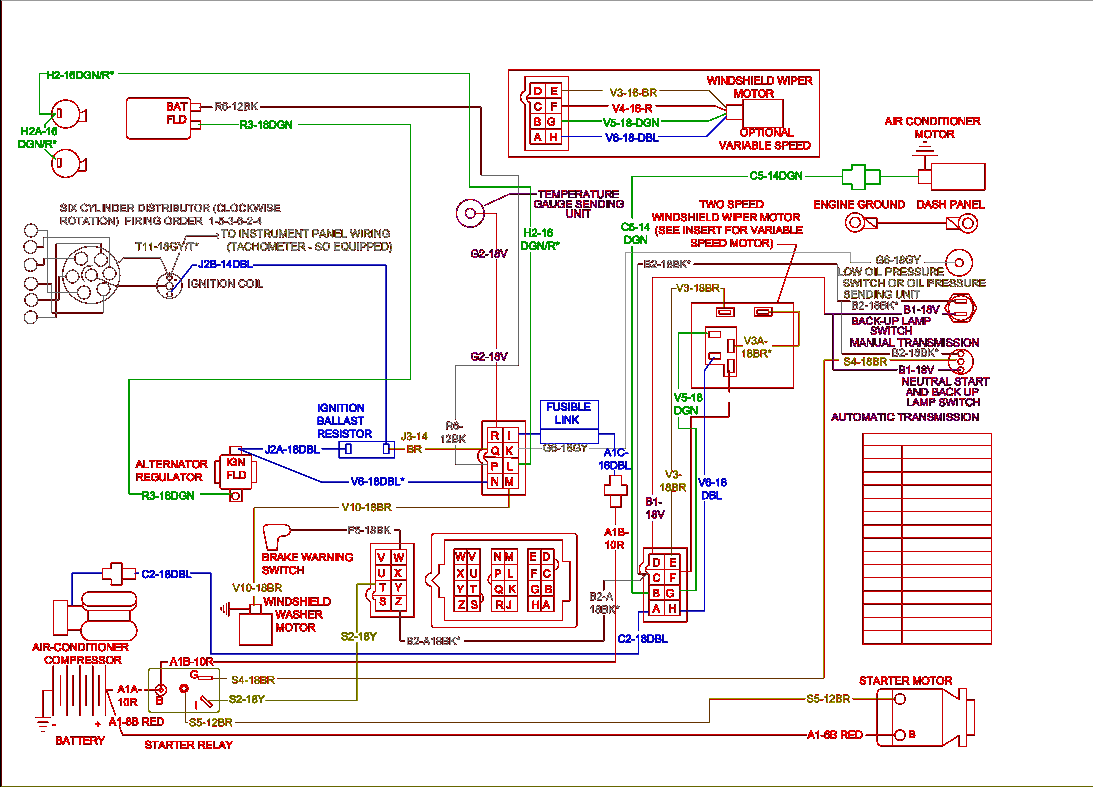

69 MoPar Engine Harness

An over all view of the primary engine wiring for a 69 MoPar system
