Ford Focus Shift Solenoids

Fixing this set of common problem is actually pretty easy! This is a common transmission so it is cheap to fix. And can be done by any mechanic.

The Problem

Various calls by the OBD for failed or malfunctioning shift control solenoids

P0750 SSA

SSA solenoid circuit failure SSA circuit failed to provide voltage drop across solenoid. Circuit open or shorted or PCM driver failure during on-board diagnostic. No reverse gear (short) or no fourth gear (open). Refer to Pinpoint Test A.

P0751 SSA

SSA functional failure Mechanical or hydraulic failure of the shift solenoid. Not all gears present. REFER to Diagnosis By Symptom (307-01 , DIAGNOSIS AND TESTING).

P0753 SSA

Indicates that the Powertrain Control Module (PCM) has detected an electrical abnormality in transmission shift solenoid A. Other associated codes include P0750, P0751, P0752, and P0754 trouble codes.

P0755 SSB

SSB solenoid circuit failure SSB circuit fails to provide voltage drop across solenoid. Circuit open or shorted or PCM driver failure during on-board diagnostic. Not all gears present. No converter clutch apply in third and fourth gears. Refer to Pinpoint Test A.

P0756 SSB

SSB functional failure Mechanical or hydraulic failure of the shift solenoid. Not all gears present. No converter clutch apply in third and fourth gears. REFER to Diagnosis By Symptom (307-01 , DIAGNOSIS AND TESTING).

P0760 SSC

SSC solenoid circuit failure SSC circuit fails to provide voltage drop across solenoid. Circuit open or shorted or PCM driver failure during on-board diagnostic. Not all gears present. Refer to Pinpoint Test A.

P0761 SSC

SSC functional failure Mechanical or hydraulic failure of the shift solenoid. Not all gears present. Refer to Pinpoint Test A.

P0765 SSD

SSD solenoid circuit failure SSD circuit fails to provide voltage drop across solenoid. Circuit open, shorted or PCM driver circuit failure during on-board diagnostics. Not all gears present. Refer to Pinpoint Test A.

P0766 SSD

SSD functional failure Mechanical or hydraulic failure of the shift solenoid. Not all gears present. Refer to Pinpoint Test A.

P0770 SSE

SSE solenoid circuit failure SSE circuit failed to provide voltage drop across solenoid. Circuit open. Shorted or PCM driver circuit failed during on-board diagnostics. Not all gears present. Refer to Pinpoint Test A.

P0771 SSE

SSE functional failure Mechanical or hydraulic failure of the shift solenoid. Not all gears present. Refer to Pinpoint Test A.

P0773 SSE

SSE is detected when the gear required by the ECM does not match the actual gear when vehicle is driven.

The Fix

The 09 Focus uses the Ford 4F27E transmission. One of the common issues is the failure of shift solenoid A and/or B. These are the two most used units. But any of the solenoids are fair game to fail. The good part is that they are all easily accessible and if you do one it makes sense to do any other units that may be a problem. They are identical. And you can do a filter change all at the same time!

Dropping the pan is straight forward. Just a bunch of 10MM bolts And that exposes the trans innards. The neat thing is that all 6 solenoids are mounted as a pack to the control module. It is a simple task to unclip the electrical connection and a single 8MM bolt and you can R&R any of the solenoids. VIDEO

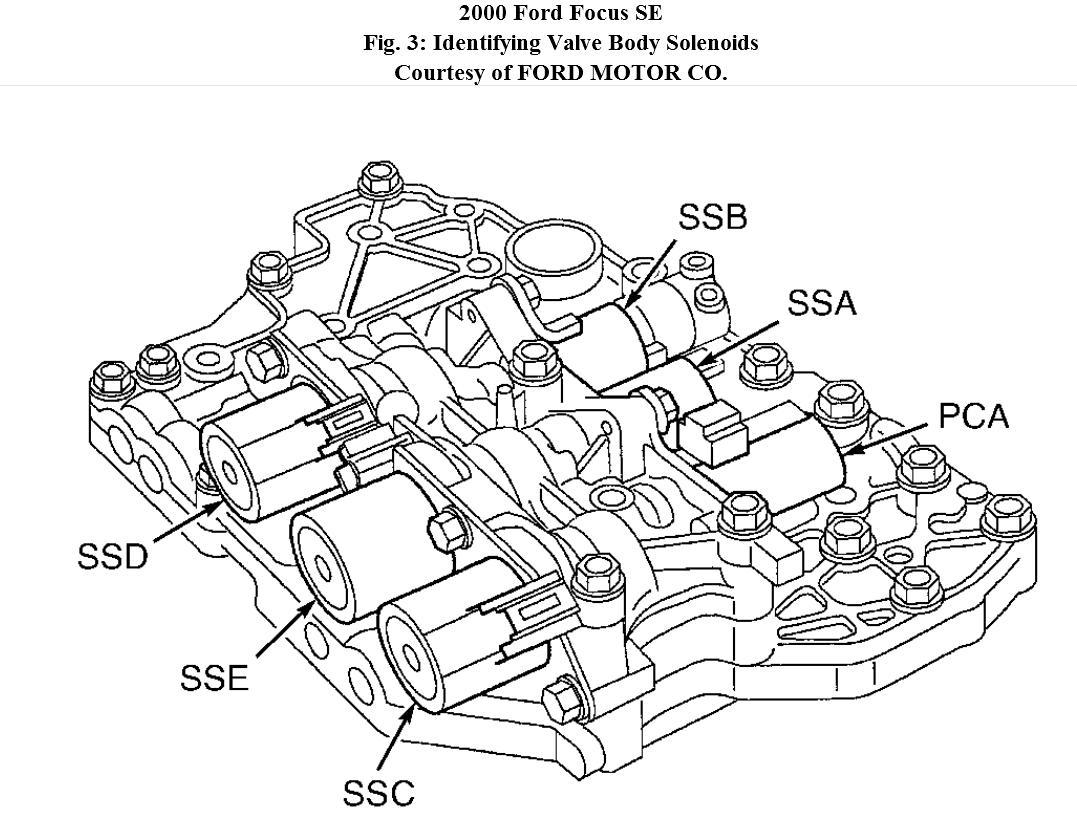

I found the Ford docs that show the location of the solenoids on the valve body. This along with the colored control wire makes the ID a snap.

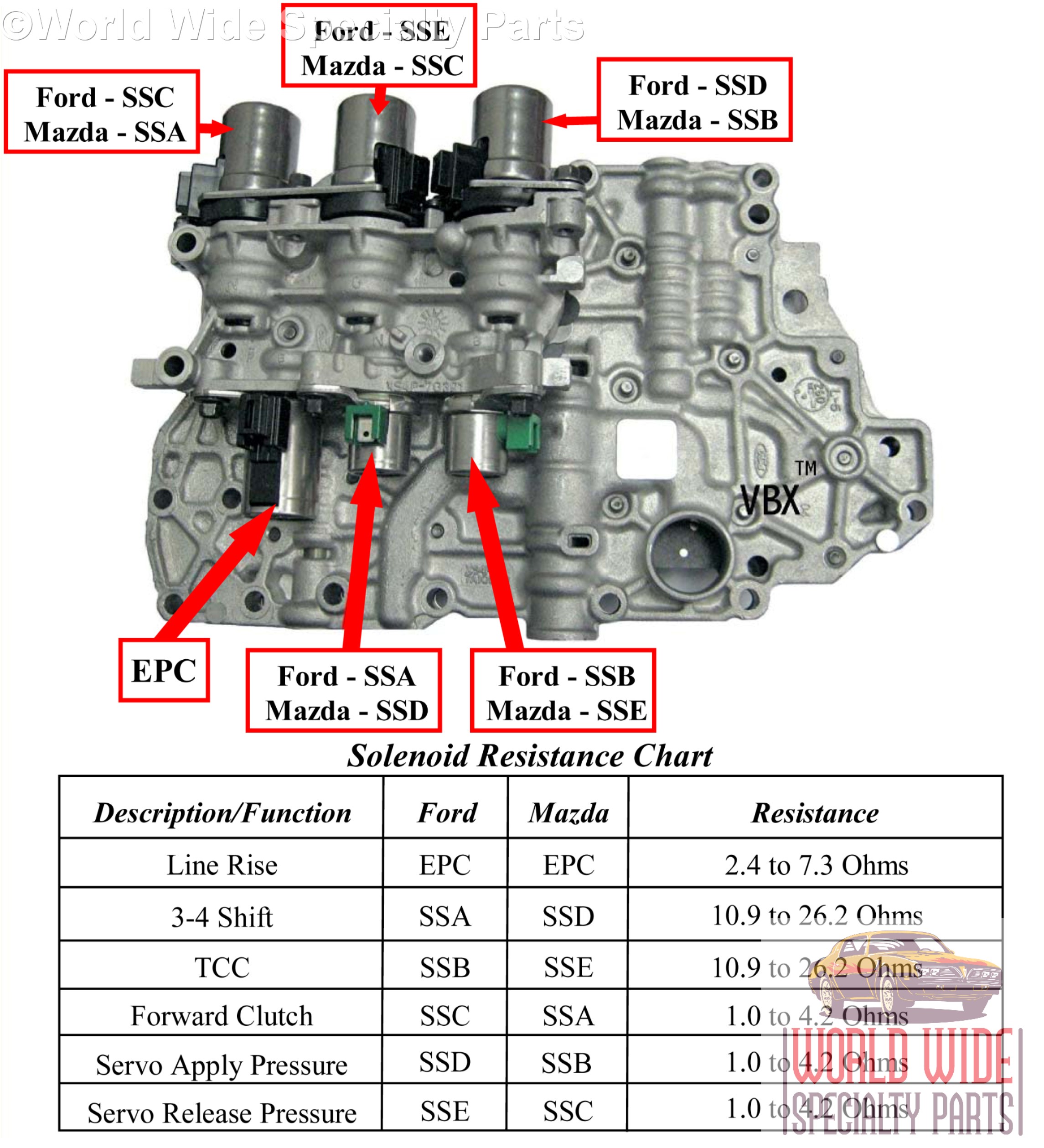

I found the Ford docs that show the location of the solenoids on the valve body. This along with the colored control wire makes the ID a snap.

Replacement Parts

Shift Solenoid A/B - OEM #XS4Z-7H148-AA

Pioneer 771111 / BWD TCS25 / ATP NE-25 / Standard TCS101

Shift Solenoid C/D/E - OEM #XS4Z-7G484AA

Standard TCS115 / WVE/Airtex/Wells 2N1246 / Pioneer 771115

Pressure Control Solenoid - OEM #XS4Z-7G383AA / #5S4Z-7G383AA / #6E5Z7G383A

Standard TCS145 / BWD TCS68 / Pioneer 771116 / WVE/Airtex/Wells 2N1247
